| ब्रांड नाम: | Sinuo |
| मॉडल संख्या: | SNB02D-2kN |
| एमओक्यू: | 1 |
| कीमत: | Customized |
| भुगतान की शर्तें: | टी/टी |
| आपूर्ति करने की क्षमता: | प्रति माह 10 सेट |

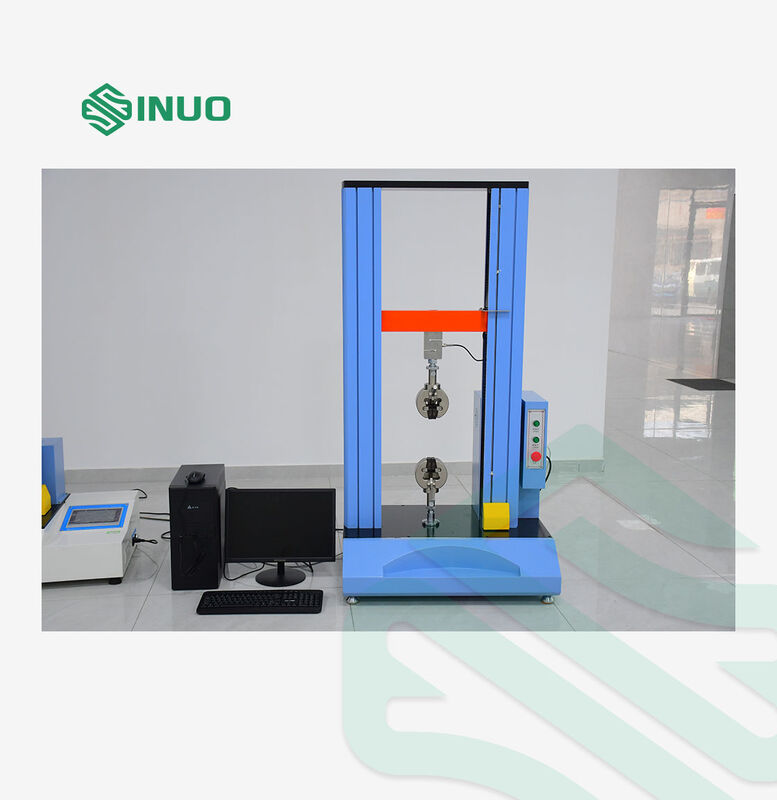

This computer-controlled universal tensile testing machine, equipped with customized fixtures, fully meets the test requirements of IEC 62196-1:2022 Clause 9, 13.3.2, 16.9, 26.7.3, Table 4 and BS 1363-2 Clause 11.10.7, 13.11.4.
It is widely used for mechanical property tests of non-metallic materials (rubber, plastic, wire and cable, textile, waterproof material, non-woven fabric, etc.) and metallic materials (metal wire, metal foil, metal plate, metal rod). With special fixtures, it can perform tensile, compression, peeling, shearing, tearing and bending tests on various finished products. The system supports multi-data printing and graphical data comparison, featuring high control accuracy and easy operation. Adopting a modular design, the machine is equipped with complete and flexible accessories.
| Force range | 0–2kN |
| Force display resolution | 0.001N |
| Unit conversion | kg, N, lb |
| Load resolution | 1/250000 |
| Loading accuracy | ±0.2% |
| Displacement units | mm, cm, in |
| Displacement display accuracy | 0.01mm |
| Test stroke | 800mm |
| Effective test width | 400mm |
| Test speed | 0.01–500mm/min (stepless adjustment) |
| Drive system | Servo motor + Taiwan ZPT ball screw + TM2101 software |

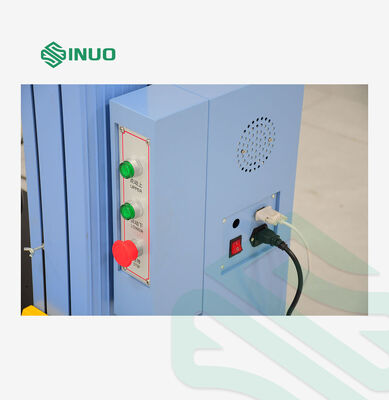

| Safety devices | Overload emergency stop, travel limit, automatic break stop |

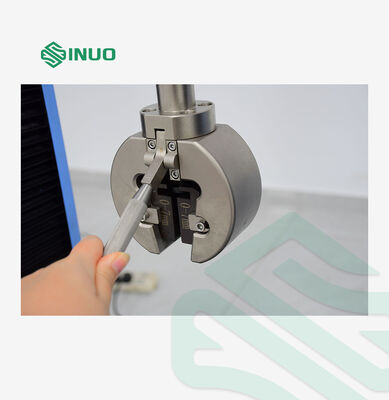

| Fixtures | 1 set of wire tension fixtures (customized for customer products) |
| Standard accessories | Including 1 set of desktop computer |

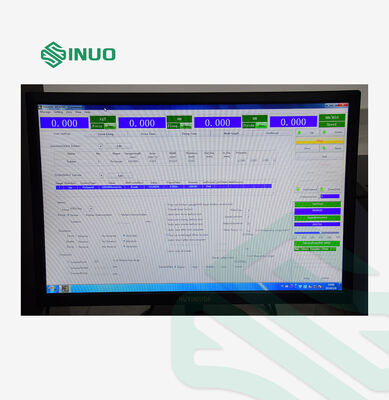

| Control | PC control (Windows platform), user-friendly with detailed help |
| Real-time multi-curve display | force-displacement, load-time, stress-strain, etc. |
| Dimensions | approx. 800×500×1500mm |
| Power supply | 220V/50–60Hz |
| Power | 1.0kW |
| Net weight | approx. 150kg |
| Servo Drive System |
| Closed-loop control of position, speed and torque, eliminating step loss |
| High speed: rated speed up to 2000–3000 rpm |
| Strong overload capacity: withstand 3 times rated torque |
| Stable low-speed operation, no stepping action |
| Short dynamic response time (within tens of milliseconds) |
| Low heat generation and noise |
|
| Taiwan ZPT Ball Screw |
| High transmission efficiency (90%–98%) |
| Smooth movement, low friction, no crawling at low speed |
| High positioning and repeat positioning accuracy |
| Good precision retention and long service life |
| High rigidity and excellent synchronization performance |
| High-Performance Control Board |
| 32-bit ARM processor, faster operation and higher precision |
| 24-bit high-precision AD acquisition, sampling rate up to 2000 times/sec |
| Force measurement accuracy better than Class 0.5 |
| 4-fold frequency encoder, displacement resolution up to 0.0005 mm |
| Pulse & voltage dual output, supporting smooth stepless speed regulation |
| Three closed-loop control (speed, displacement, force) |
|
Abundant interfaces with photoelectric isolation for strong anti-interference |
|
|
| Professional Manufacturing Process |
| Precision machining ensures assembly accuracy |
| Paint-coated body and heat-treated fixtures for durability |
| Synchronous belt drive with accurate transmission ratio |
| Stable structure and reliable long-term operation |
