IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

ब्रांड नाम:	Sinuo
मॉडल संख्या:	एसएन553-आरवी8000
एमओक्यू:	1
कीमत:	Customized
भुगतान की शर्तें:	टी/टी
आपूर्ति करने की क्षमता:	प्रति माह 10 सेट

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

प्रमाणन:

Calibration Certificate (Cost Additional)

आवृति सीमा:

10----60Hz

Max. मैक्स। load capacity भार क्षमता:

300 किलो

त्वरण सीमा:

0---11जी

तरंग:

साइन लहर

उपकरण वजन:

500 किलो

टेबल का आकार:

1000मिमी×800मिमी

उपकरण आयाम:

W1050mm×D820mm×H680mm

बिजली की आपूर्ति:

AC220V/50HZ/एकल चरण

पैकेजिंग विवरण:

एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम

आपूर्ति की क्षमता:

प्रति माह 10 सेट

उत्पाद का वर्णन

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load

Product Overview

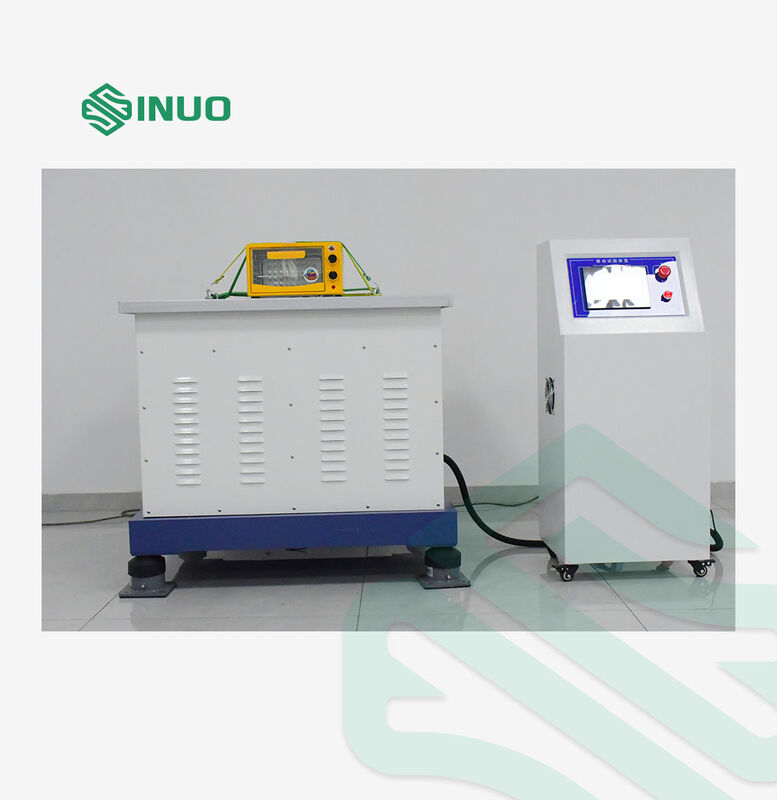

The SN553‑RV8000 Mechanical Vibration Testing Machine is designed to simulate transportation vibration and mechanical shock for household appliances, electronics, components, modules, instruments, and electromechanical products. It fully complies with reliability test standards including IEC 60068, MIL‑STD‑810, ISO 10816, and UL, making it ideal for quality verification, reliability testing, and transport simulation.

Technical Parameters

Table Size	1000mm×800mm
Frequency Range	10----60Hz
Max. Load Capacity	300KG
Acceleration Range	0---11G
Amplitude Range	0—2.6mm(P-P),adjustable
Control Interface	RS232 /9P
Functions	Fixed frequency, sweep (logarithmic Oct/min, linear), multi-stage random
Waveform	Sine wave
Vibration Direction	Vertical (X/Y/Z directions achieved by adjusting product orientation)
Equipment Dimensions	W1050 mm×D820 mm×H680 mm
Equipment Weight	500KG
Power Supply	AC220V/50HZ/Single-phase

Product Features

Centrifugal excitation structure, low noise, stable performance
Synchronous reverse drive for uniform vibration and minimal lateral displacement
Lockable casters for easy movement; no fixed foundation required
Amplitude preview & stepless adjustment for flexible testing

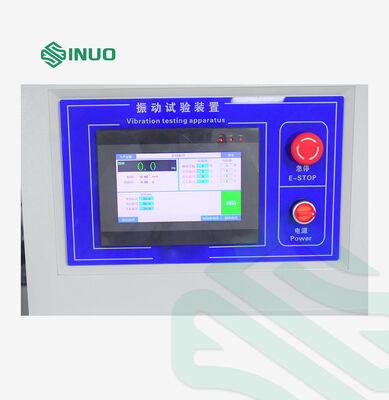

Real‑time display: amplitude, acceleration, frequency, test time & cycles
User‑friendly Chinese/English Windows operation interface
Supports unlimited test parameter groups & test report printing
Wide application: household appliances, electronics, components, modules, instruments

Product Details
