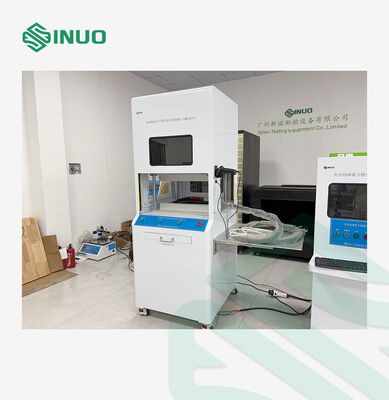

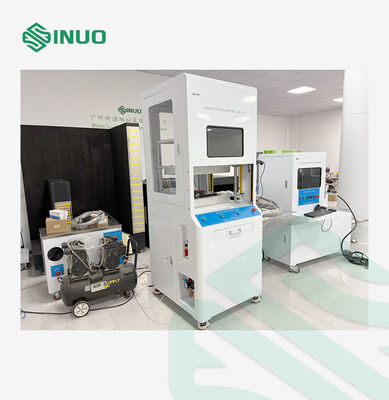

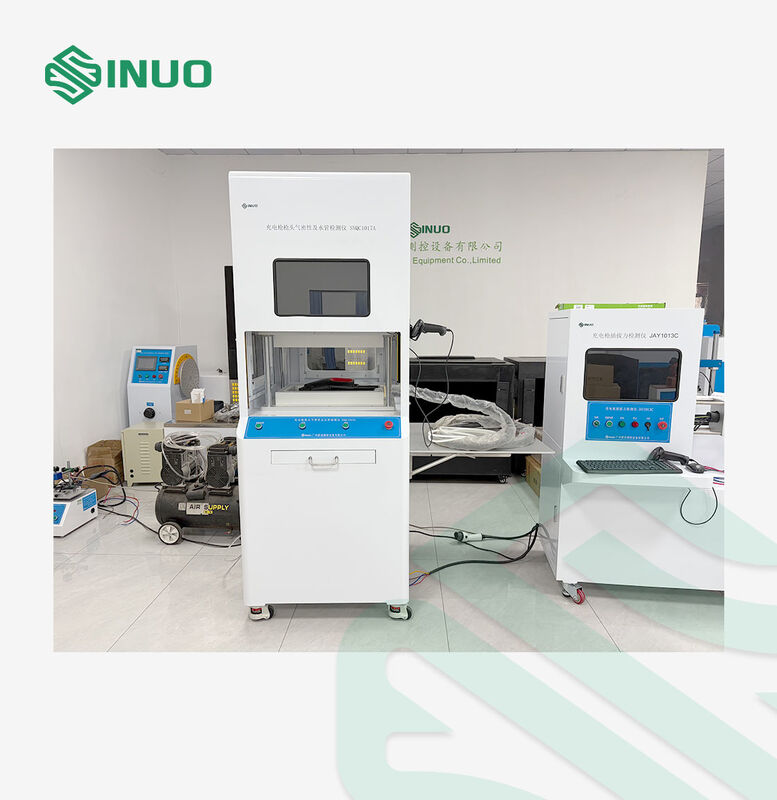

Electric Vehicle Charging Connector & Water Pipe Air Tightness Tester
Product Overview
The Electric Vehicle Charging Connector & Water Pipe Air Tightness Tester is a high-precision leak detection solution designed for EV charging gun components and water pipes. It performs airtightness and pressure-drop tests based on IPX7 standards to ensure product reliability and identify defective incoming materials before assembly.
This tester provides stable pressure output, micro-leakage monitoring, automatic evaluation, and data recording—ideal for EV charger manufacturers, charging gun assembly lines, and laboratory verification departments.
Technical Parameters
|
Technical Item |
Specification |
|---|---|
| Display Resolution | 0–4 decimal places adjustable |
| Measurement Range | 0 to ±2000 Pa |
| Pressure Resistance | 1 MPa |
| Accuracy | ±0.1% FS |
| Display Resolution | 0–4 decimal places adjustable |
| Overpressure Resistance | 3× full-scale pressure |
| Accuracy | ±0.1% FS |
| Test Pressure Units | kPa, kg/cm², PSI, mbar, bar, Torr, mmH₂O, mmHg |
| Leakage Units | Pa, Pa/s, mL/s, mL/min, L/min, Pa·m³/s |
| Parameter Channels | 64 channels (1–64) |
| Test Cycle Setting | 0–999 seconds |
| CPU | 32-bit processor |
| Power Supply | AC 220V ±10%, 50 Hz |
| Required Air Source | Clean, dry air ≥ 600 kPa |
| Operating Temperature | –5°C to 40°C |
| Storage Temperature | –20°C to 70°C |
| Humidity | < 80% RH, non-condensing |
Details
