| ब्रांड नाम: | Sinuo |
| मॉडल संख्या: | एसएनक्यूसी1017 |
| एमओक्यू: | 1 |
| कीमत: | Customized |
| भुगतान की शर्तें: | टी/टी |
| आपूर्ति करने की क्षमता: | 30 सेट/महीना |
Offset Misalignment Test Apparatus EV Charging Interface Misalignment Tester
Complied Standards & Clauses
This test equipment conforms to UL2552-2022, clause 54C.3 and Figure 54C.2, IEC62196-1.
Equipment Overview
Samples and restrictions: Charging interface
Application: Used to apply up, down, left, and right forces to the gripping point of the charging gun to simulate the offset operation it undergoes during normal use and verify its compressive strength in all directions.
Test principle: The servo motor drives the manipulator to apply force in four directions: -X+X-Y+Y. The force value and interval time are in accordance with the standard requirements.
Equipment structure and characteristics:
1. The equipment utilizes PLC control, touchscreen operation, and four-directional force sensors for monitoring.
2. One independent workstation allows for testing one sample in four directions.

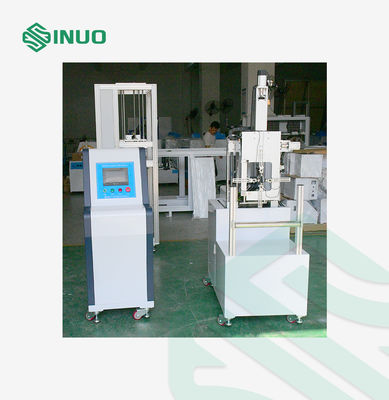

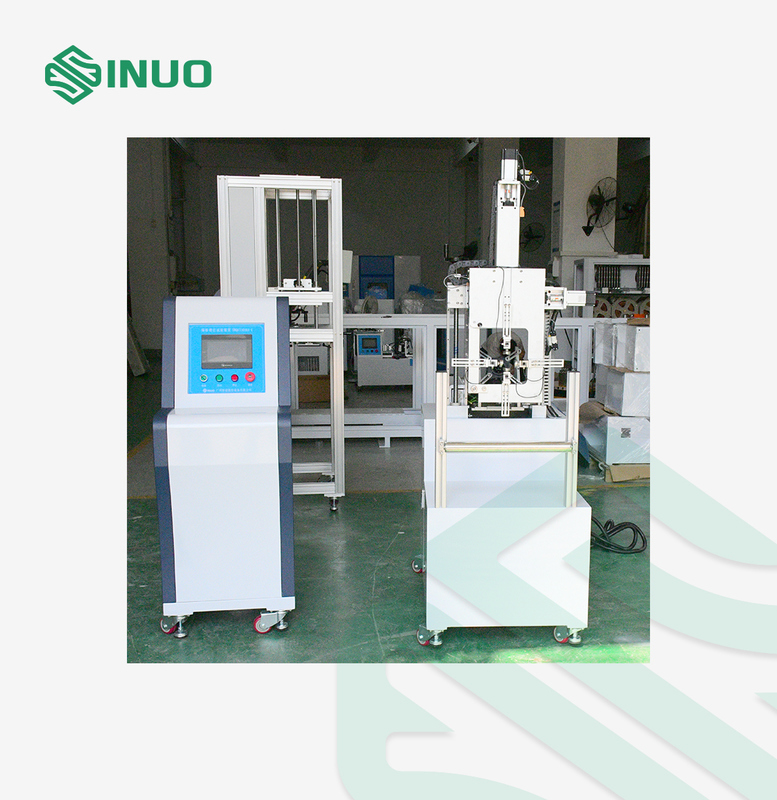

3. The control cabinet and actuator are separate, allowing the entire actuator support platform to be placed in a constant temperature chamber
Equipment Dimensions (subject to final design drawing):
Actuator Support Platform: 1200 × 800 × 1500 mm (W × D × H);
Cabinet: 500 × 400 × 1400 mm (W × D × H);
Approximate Equipment Weight: 200 kg
Usage environment:
Power supply: AC220V±10%/50-60Hz, operating temperature 5-35℃, humidity 30%-90%;
Technical Parameters
| Control and operation method | PLC control, touch screen operation |
| Station | SNQC1016A-1 Single station |
| Force direction | +X -X +Y -Y are applied in sequence (the program can be customized according to needs), as shown below |
| Force applying mechanism |
YZ axis vertical axis automatic manipulator, X axis adjustable |

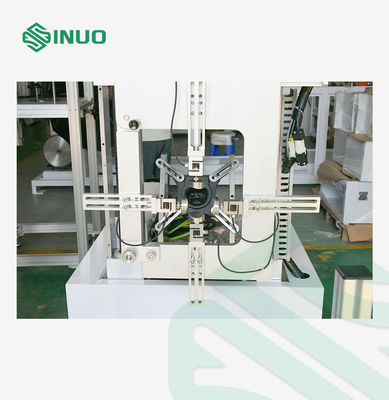

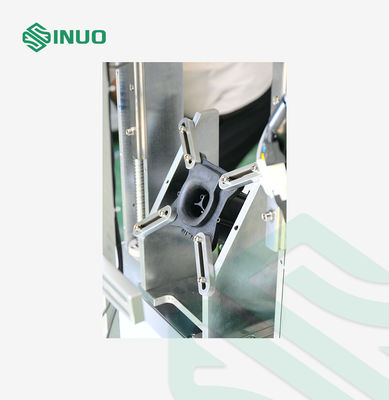

| Specimen fixture | Universal arc-shaped clamp, can clamp most charging guns, V-shaped clamp can be adjusted 200mm left and right |
| Applied force value | 0-500N, can be preset, force sensor monitoring, automatic system control |
| Interval time | 0～999.9s, can be preset |
| Force application time | 0～999 .9s,can be preset |
| Number of trials | 0-999999 times, can be preset |
| Socket center distance to ground | 1m, mounting plate tilted 30° (from vertical direction) |
| Protect | Overload protection, leakage protection, short circuit protection |
