| ब्रांड नाम: | Sinuo |
| मॉडल संख्या: | SN449-2744L |
| एमओक्यू: | 1 |
| कीमत: | Customized |
| भुगतान की शर्तें: | T/T |
| आपूर्ति करने की क्षमता: | 1 sets/month |
IPX5 IPX6 Water Spray Test Chamber for Waterproof Testing of Electronic Devices
Complied Standards & Clauses
Conforms to IEC 60529, etc.
Equipment Overview

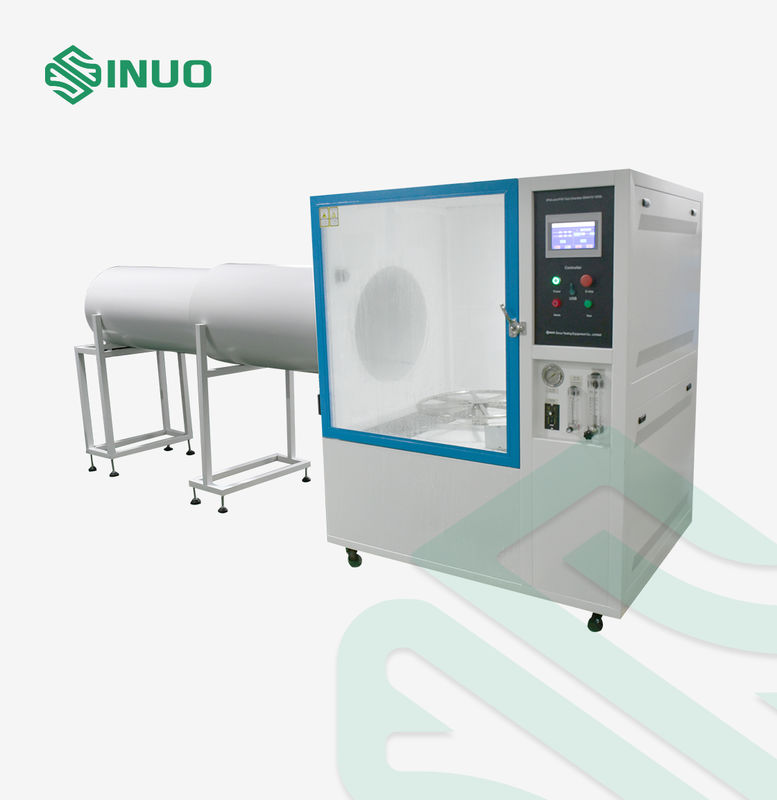

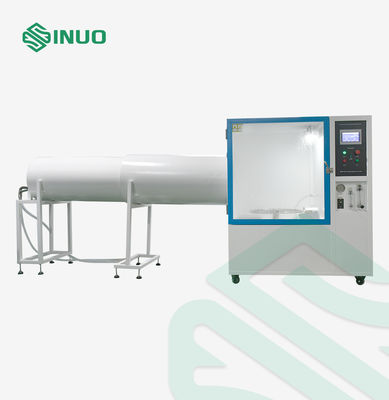

The IPX56-2744L Horizontal Strong Water Spray Test Chamber is a high-performance testing system designed to evaluate the waterproof capabilities of electronic and electrical products under simulated heavy rain and jetting water conditions. It supports IPX5 and IPX6 level testing, essential for validating product durability, safety, and compliance with international waterproofing standards.
Dual IPX5/IPX6 Testing in One Chamber
Equipped with both IPX5 and IPX6 stainless steel nozzles, providing comprehensive testing capability for different waterproof levels.
Large Inner Test Space
Extra-large chamber (1400×1400×1400 mm) suitable for testing large equipment like EV parts, electrical cabinets, and automotive components.
High Water Pressure & Flow Simulation
Supports adjustable pressure from 30–200kPa and water flow up to 100 L/min, simulating realistic heavy rain and jet spray environments.

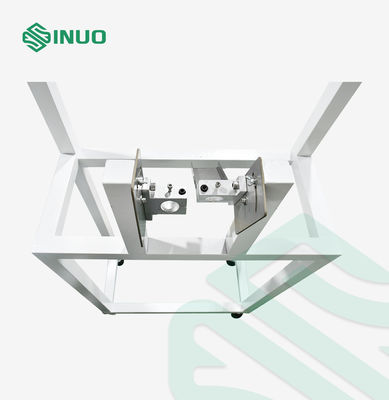

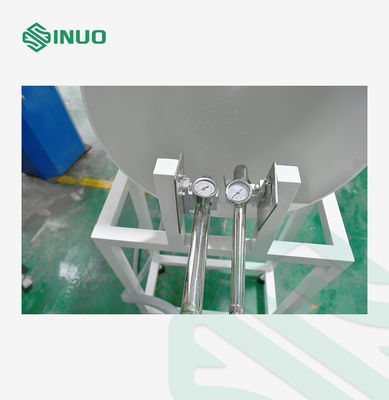

Automated Oscillating Nozzle System
Electrically oscillating nozzles provide uniform water exposure from all angles, ensuring accurate test coverage.
Durable Materials
SUS304 stainless steel inner chamber and 304# stainless steel nozzles ensure corrosion resistance and long service life.
Sinuo Self-Developed Touchscreen System
Intuitive control with precise parameter adjustments for pressure, flow rate, test duration, and turntable speed.
Technical Parameters
|
Item |
Specification |
|---|---|
| Inner Chamber Size | 1400 × 1400 × 1400 mm (W×D×H) |
| Outer Chamber Size | About 4200 × 1460 × 2200 mm |
| Turntable Diameter | 600 mm |
| Turntable Load Capacity | 20 kg |
| Turntable Speed | 1–7 RPM (adjustable) |
| Distance from Nozzle to Sample | 2500–3000 mm |
| Number of Nozzles | 2 pcs (IPX5: φ6.3mm, IPX6: φ12.5mm) |
| Water Flow Rate | IPX5: 12.5 ± 0.625 L/min; IPX6: 100 ± 5 L/min |
| Water Spray Pressure | 30–200 kPa (adjustable) |
| Water Spray Duration | 3, 10, 30, 9999 min (adjustable) |
| Water Circulation | Yes |
| Nozzle Swing Function | Yes (Electric, Up & Down) |
| Inner Chamber Material | SUS304 Stainless Steel |
| Control System | Sinuo Self-Developed Touchscreen System |
| Power Supply | AC 380V, 50Hz, 3-phase, 4KW |
| Protection System | Leakage, Phase Sequence, Alarm Prompt |
