Waterproof Testing Machine IPX3 IPX4 Test System Oscillating Tube Rain Test Equipment
Complied Standards & Clauses
IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013.
Product Overview
The IPX3~4 Oscillating Tubes Test System is designed in full compliance with IEC 60529:2013 and is specifically developed to test the IPX3 and IPX4 water ingress protection levels of electrical and electronic products.

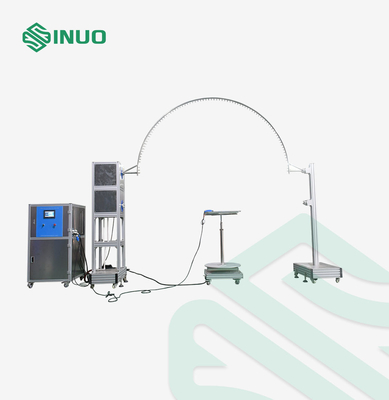

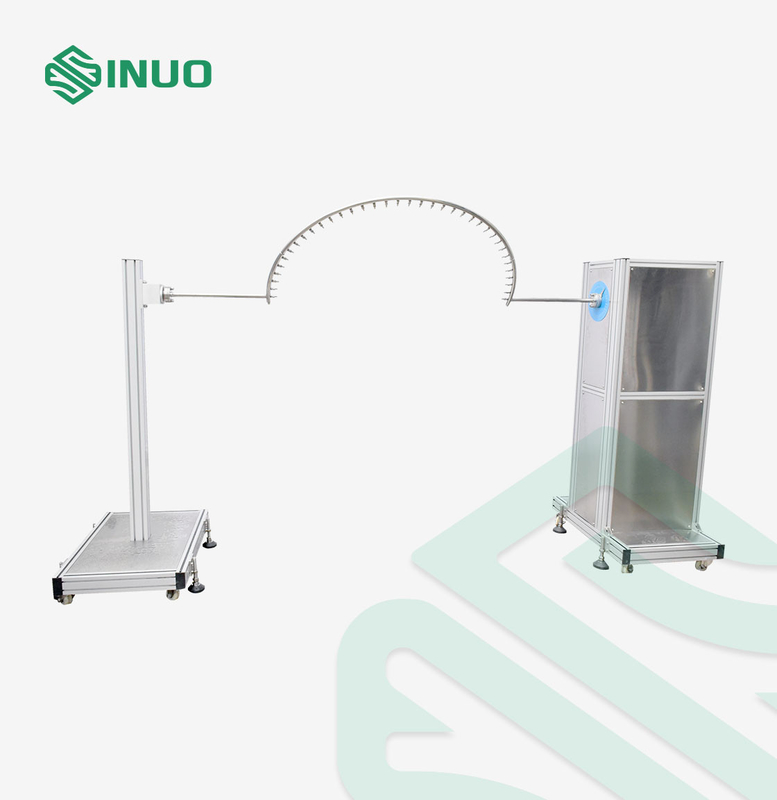

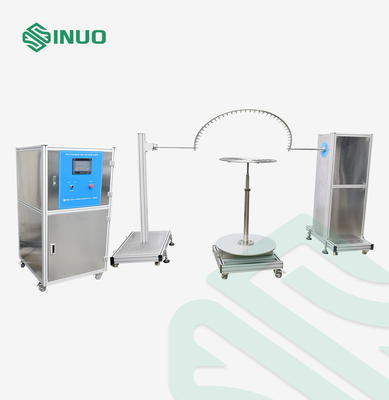

This complete testing solution includes a motorized oscillating tube swing mechanism, a full set of oscillating tubes ranging from R200mm to R1600mm, a specimen turntable, and an intelligent water supply and control cabinet.

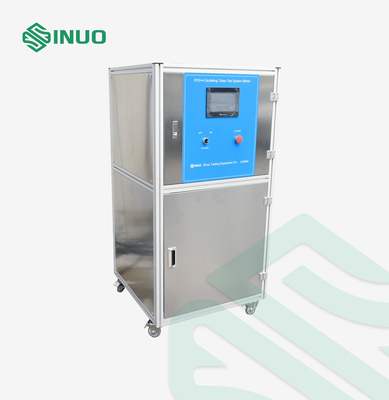

The intelligent control system features a water supply tank, water pump, PLC controller, frequency converter, and flow meter, ensuring precise and programmable flow control for reliable and repeatable testing.
It is an essential tool for quality assurance and certification laboratories, ensuring that your products meet international waterproof standards.
Technical Parameters
|
Item |
Parameters |
|---|---|
| Water Supply | Flow rate >10L/min ±5%, clean water with filtration unit |
| Oscillating Tube Sizes | R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm (Stainless steel) |
| Needle Hole Diameter | Φ0.4mm |
| Included Angle Between Holes | IPX3: 120°, IPX4: 180° |

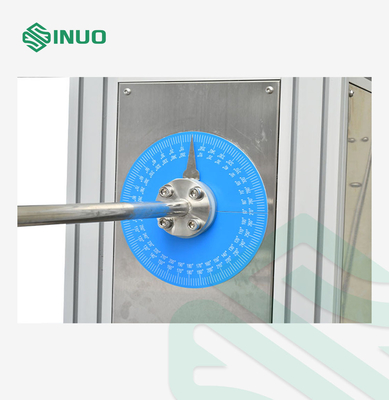

| Oscillating Tube Swing Angle | Max. ±175° preset (IPX3: 120°, IPX4: 360°* — *360° not achievable with turntable) |
| Raining Speed | IPX3: 4s/time (2×120°), IPX4: 12s/time (2×360°) |
| Water Flow Rate per Hole | 0.07 L/min per hole (set based on tube size and number of holes) |
| Testing Time | Programmable: 1–99999 seconds |
| Pressure Gauge Range | 0–0.25 MPa |
| Turntable | Diameter: Φ600mm, Speed: 1r/min, Load Capacity: ≤50kg |
| Site Requirements | Dedicated waterproof test room; flat ground with lighting and drainage; 10A waterproof leakage switch or socket |
| Electrical Control | PLC & Touch Screen |
| Equipment Power Supply | AC 380V, 50Hz, 4KW |
| Sample Power Supply | AC 220V, 10A |
Details
