| ब्रांड नाम: | Sinuo |
| मॉडल संख्या: | एसएन886-18एफ |
| एमओक्यू: | 1 |
| भुगतान की शर्तें: | टी/टी |
| आपूर्ति करने की क्षमता: | 10 Sets Per Month |
Explosion Proof Walk-In Environmental Test Chamber for Battery Testing 8.36m³
Complied Standards & Clauses
Compliance standards:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Product Overview
The SN886-8.36m³ explosion-proof walk-in temperature and humidity test chamber is specially designed for the safety testing of lithium-ion batteries and other hazardous samples. It provides a stable, programmable, and explosion-proof test environment to simulate extreme conditions such as high/low temperature, humidity cycling, and thermal stress. The chamber meets IEC60068 standards and supports real-time monitoring, automatic fire suppression, and pressure relief for maximum safety and compliance in battery R&D labs, EV validation centers, and high-risk test environments.
Explosion-proof structure with automatic pressure relief vents
Wide test range: -40℃ to +120℃, 20~98%RH
Rapid temperature rise/fall with 4kW load simulation
Integrated fire detection and suppression system
Durable walk-in structure for large-format batteries/modules
Programmable control with 100 custom test programs
Complies with IEC60068-2-1/2-2/2-30/2-78 standards
Technical Parameters
|
Parameter |
Specification |
|---|---|
| Internal Volume | Approx. 8.36m³ |
| Internal Dimensions | 1900×2200×2200 mm (W×H×D) |
| Temperature Range | -40℃ ~ +120℃ |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Deviation | ±2.0℃ |
| Humidity Range | 20% ~ 98%RH (at 20℃–85℃, no active load) |
| Humidity Deviation | ±3%RH (>75%), ±5%RH (≤75%) |
| Temperature Rise Time | +20℃ → +80℃ ≤3℃/min (with 4kW battery load) |
| Temperature Drop Time | +20℃ → -40℃ ≤1℃/min (with 4kW battery load) |
| Noise Level | ≤75dB |
| Load-bearing Capacity | 600kg/m² |
| Power Supply | AC380V ±10%, 50Hz, 40kW |

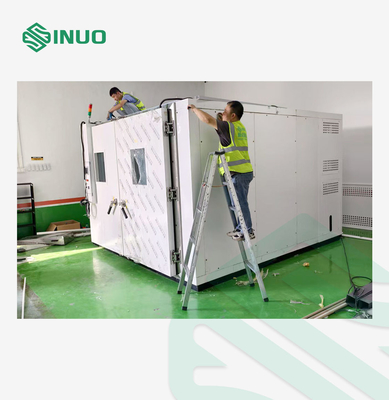

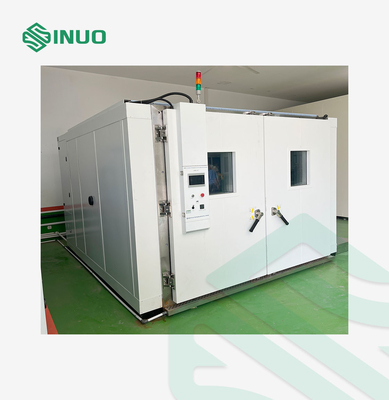

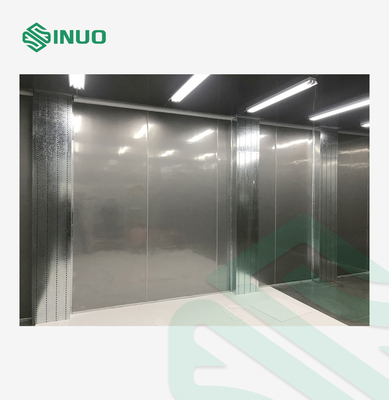

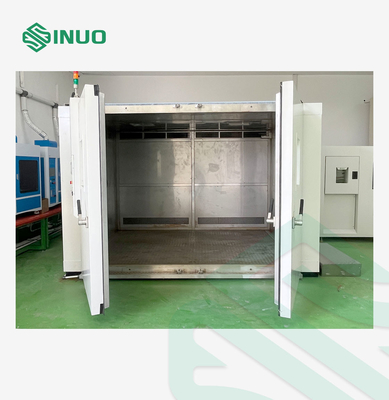

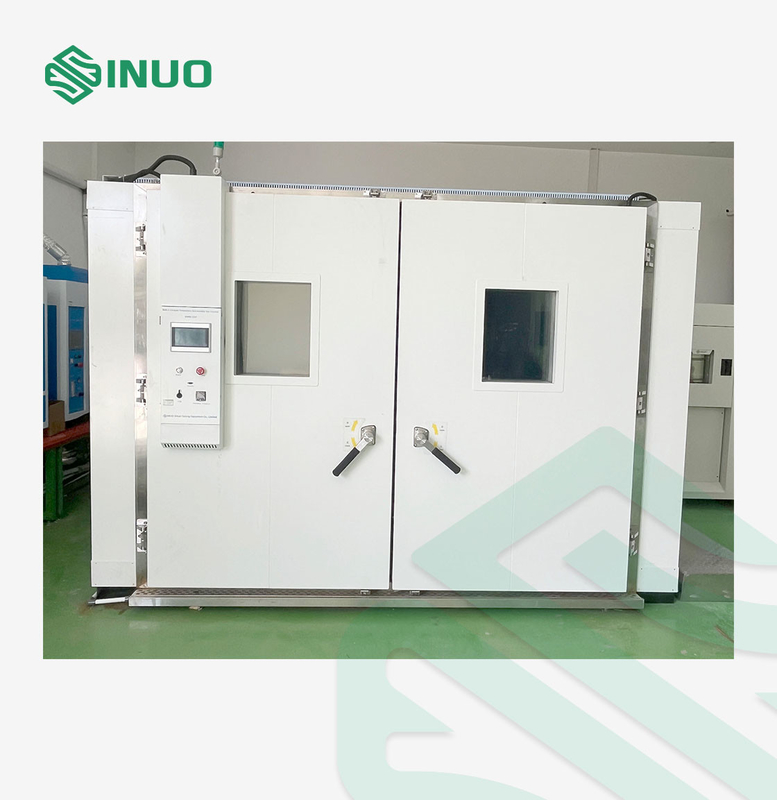

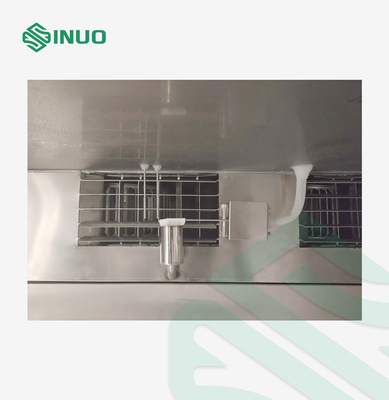

Details
